EDU System | Power Modules | Inverter
PEM.EDU.INV.XXX.01.A.XXXX.XX
Description:

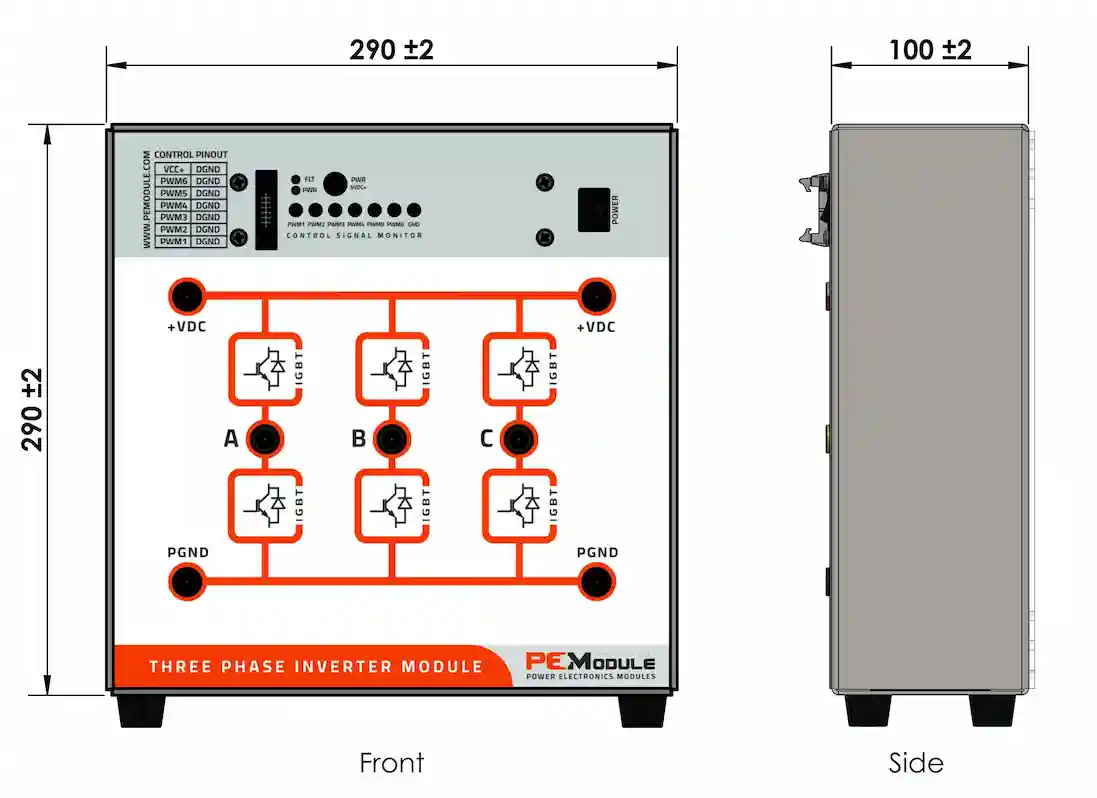

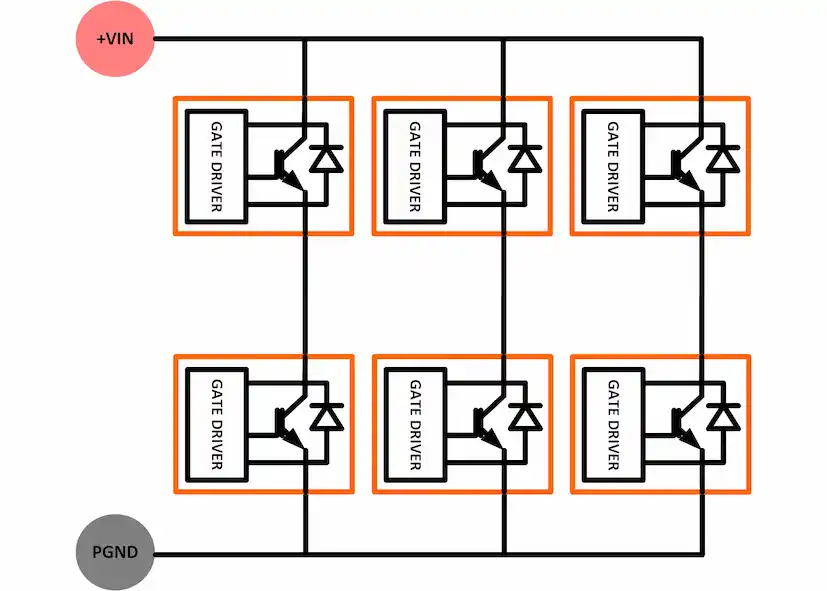

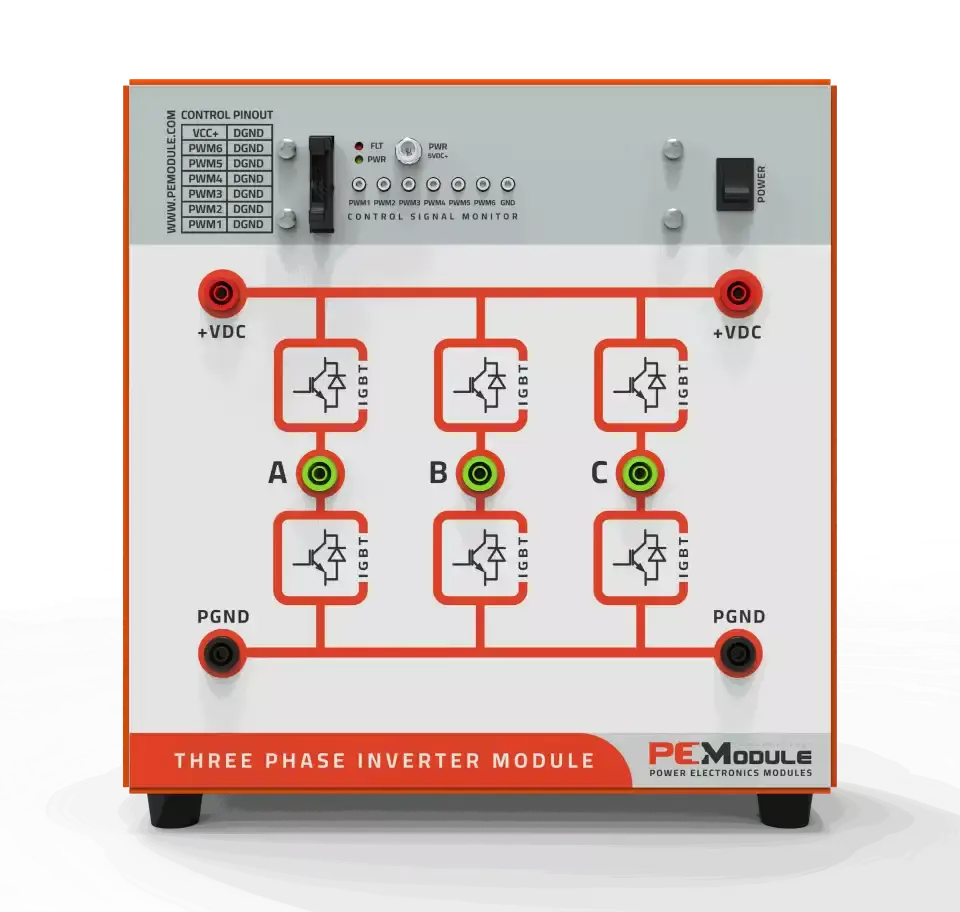

PEModule PLUGY EDU three-phase inverter module includes 6X switches can be IGBTs, MOSFETs or SiC MOSFETs (based on selected modules) in three-phase Inverter connection.
Main Features:
- Versatile Compatibility: Supports single-phase half-bridge, full-bridge, and three-phase inverters.
- Customizable: Available in IGBT, MOSFET, and SiC MOSFET.
- High Performance: High-efficiency switches.
- User-Friendly: Safety-shouldered connectors, open PWM terminals.
- Control Integration: Works with HIL, DSP, and microcontrollers.
- Easy Maintenance: Modular design.
- Visible & Safe: Transparent back cover.
- Durable & Portable: Heavy-duty, compact steel enclosure.
Follow us
EDU Module Specifications
EDU Module Specifications
| Part No | Switch Ratings | Operating Ratings |
|---|---|---|
| PEM.EDU.INV.IGBT.FWD.01.A.1200.50 | IGBT 1200 V / 50 A | 600VDC/5A @2.5KHz |
| PEM.EDU.INV.IGBT.FWD.01.A.1200.30 | IGBT 1200 V / 30 A | 600VDC/5A @2.5KHz |
| PEM.EDU.INV.IGBT.FWD.01.A.0600.60 | IGBT 600 V / 60 A | 300VDC/10A @2.5KHz |
| PEM.EDU.INV.IGBT.FWD.01.A.0650.55 | IGBT 650 V / 55 A | 300VDC/10A @2.5KHz |
| PEM.EDU.INV.MOSFET.01.A.0200.5 | MOSFET 200 V / 50A | 100VDC/10A @50KHz |
| PEM.EDU.INV.MOSFET.01.A.0100.80 | MOSFET 100 V / 80A | 50VDC/10A @50KHz |
| PEM.EDU.INV.SICMOSFET.01.A.1200.36 | SIC MOSFET 1200 V / 36A | 600VDC/5A @10KHz |
| PEM.EDU.INV.SICMOSFET.01.A.1200.19 | SIC MOSFET 1200 V / 19A | 600VDC/5A @10KHz |
| PEM.EDU.INV.SICMOSFET.01.A.0750.43 | SIC MOSFET 750 V / 43A | 300VDC/10A @10KHz |
